"Blue Lightning" - Dave's 2024 Ford F-150 Lightning Flash
Information

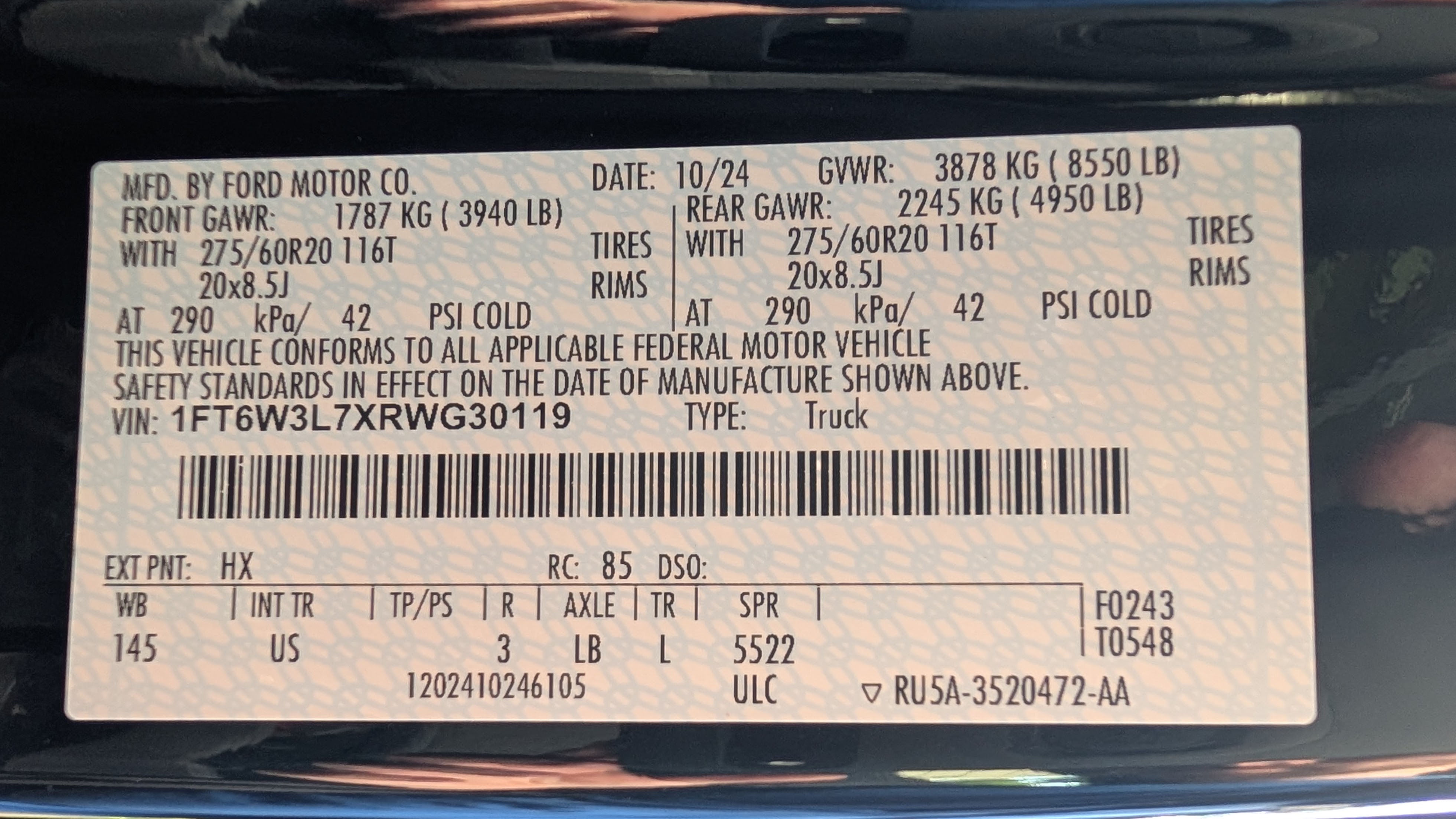

| VIN | 1FT6W3L7XRWG30119 |
|---|---|
| Build Date | 2024-10-01 |
| Purchase Date | 2025-02-22 |
| Color | Antimatter blue |
| Engine | 580HP 775 lb-ft Permanent Magnet Synchronous Motor, dual |
| Transmission | Single-speed |
| HV Battery | 131 kWh |
| Axle | 9.61 Rear eLocking Axle |
| Suspension | Front: Independent double-wishbone with coil-over shock, stabilizer bar. Rear: Independent semi trailing arms with coil-over shock. |
| Wheels | 20-Inch Alloy Dark Carbonized Gray |
| Tires | 275/60 R20 All-Season Goodyear Wrangler |
| Miles per Year | 26,641 mi/yr (8/20/2025 – 4/8/2026) |
Parts & Capacities
| Lug Nuts | M14 x 1.5, 204.0 Nm / 150 ft-lb |
|---|---|
| Coolant | 16 L / 4.2 gal / 16.9 qt Motorcraft Yellow |
| Air Filter | Motorcraft FP-92 cabin |
| 12V Battery | Motorcraft BAGM-H3 |
| Wiper Blades | Motorcraft WW-2008 (both) |
Dimensions
| Curb Weight | 2885 kg / 6360 lb |
|---|---|
| GVWR | 3878 kg / 8549 lb |
| GCWR | 6804 kg / 15000 lb |
| Max Tow | 3493 kg / 7700 lb |
| Length | 5911 mm / 232 in |
| Width | 2438 mm / 95 in |
| Height | 1989 mm / 78 in |
| Wheelbase | 3696 mm / 145 in |
| Front Track | 1730 mm / 68 in |
| Rear Track | 1735 mm / 68 in |
| Ground Clearance | 213 mm / 8 in |
Maintenance Records
| Date | Mileage | Service | Notes |
|---|---|---|---|
| 2026-04-08 | 28,176 | 30,000 mi Service | Riverside Ford, Macon, GA. Tires rotated. NHTSA Recalls 25V863 (park module) and 26V104 (trailer module). |
| 2026-01-03 | 21,053 | 20,000 mi Service | |
| 2025-09-09 | 12,458 | Replaced Cabin Air Filter | Motorcraft FP-92 from Amazon. |
| 2025-08-20 | 11,327 | 10,000 mi Service | Garber Ford, Jacksonville, FL. Tires Rotated. NHTSA Recall 25V341 (ball joints). |
